Olivera Project · Project Estimate

OLIVERA PROJECT · ESTIMATE 5237-1

From removing the old pool to the first swim in the new one.

Review the design, the full scope and the investment, at your own pace. When you are ready, approving takes three steps.

01 Video

New pool, spa & sunshelf

Complete proposal · 13 line items

The old pool and deck demolished and hauled away, then a new 15' x 30' gunite pool with a 7' x 7' flush spa, a 7' x 7' sunshelf and a raised wall with a 48" waterfall; infinity coping, blue waterline tile and a travertine or marble deck; a full Jandy pad with heat pump, salt and app control.

Total investment$130,000

View this video

One proposal, one fixed price, demolition and permits included.

OPTION 01 / WORK SEQUENCE VIDEO

New pool, spa & sunshelf

$130,000 · Proposal 5237-1

LIQUID LUXE / OLIVERA PROJECT PROJECT VISUALIZATION

ILLUSTRATIVE WORK SEQUENCE · NOT TO SCALE OLIVERA PROJECT

One fixed scope for the whole backyard: removing the old pool and deck, building the new pool, spa, sunshelf and waterfall wall, the coping, tile and finish, the new deck, and a complete Jandy equipment pad controlled from your phone. Every permit fee is already inside the price.

Potential advantages

A clean start. The old pool, raised spa and cracked paver deck are demolished and hauled away; you get a brand-new shell, not a patch.
Pool, spa and sunshelf in one. A 7' x 7' flush spa with air blower, a 7' x 7' sunshelf for in-water loungers and a 48" waterfall wall.
Permits with no surprises. Every city, county and private provider fee is in the price, and the private provider keeps the project at least 50% faster.
Warm water when you want it. A 142,000 BTU Gulfstream heat pump with a 10-year parts warranty.
Everything on one app. iAquaLink controls pool, spa, lights, garden lights and the heater over Wi-Fi.

Limitations to resolve

Selections. Deck material (travertine or marble) and the pool finish color are to be chosen.
Deck area. The deck price covers up to 800 sf; a larger deck would be a change order.
Timeline. About 10 days of engineering, up to 15 days for permits, then 60 to 90 days of construction.
Final layout. Dimensions are approximate; elevations and the final layout follow the engineered plans and site conditions.

Next decision: approving the proposal and choosing the deck material lets engineering start, the first step on the timeline.

SCOPE & INVESTMENT / FIVE GROUPS, 13 ITEMS

Everything included

Demolition

The existing pool, spa and deck removed and hauled away.

Subtotal$18,000

Demolition of the old pool and deck

Demolition of the entire existing pool, raised spa and paver deck, with all debris hauled away.

See details

Demolition Concrete · 1 Lump sum × $18,000

Demolition and dumping of the entire existing pool and pool deck

$18,000

Pool, spa & sunshelf

The new shell with spa, sunshelf and waterfall wall, plus engineering and permits.

Subtotal$55,250

Pool, spa and sunshelf shell

15' x 30' gunite pool with a 7' x 7' flush spa, a 7' x 7' sunshelf and a 15' raised wall with a 48" waterfall. Steel, plumbing and every inspection included.

See details

Pool Shell Construction Includes · 120 Linear Feet × $404.58

Set elevation, frame and excavate a 15' x 30' pool with a 7' x 7' flush spa and a 7' x 7' sunshelf
Build a 15' x 18" raised wall with a 48" waterfall
Depth: 3' shallow end to 4'11" deep end
Full steel rebar structure and gunite shoot of the pool shell
Plumbing per plans: 1 main drain, 1 vacuum line, 1 skimmer and pool returns
Piping to equipment location, manifold setup and pressure test rig
All required inspections included

$48,550

Engineering

Pool plans and engineering, about 10 days.

See details

Engineering Fee · 1 Each × $2,200

Plans and engineering fee
Lead time 10 days

$2,200

Permits, all fees included

Fixed price with every city, county and private provider fee included. A private provider reviews and inspects, keeping the project at least 50% faster.

See details

Permits And Fees (All Included - Private Provider) · 1 Each × $4,500

Fixed price: all county or city permit fees and all private provider fees included
Documents, submission (structural, plumbing, gas, electrical and mechanical), follow-up, issuance, inspections and closure
Private provider: a state-licensed firm does plan review and inspections in place of the municipality, at least 50% faster

$4,500

Coping, tile & finish

Infinity coping, waterline tile and the pool interior.

Subtotal$16,900

Infinity coping

100 lf of polished, non-bullnose infinity coping, mud set on the pool beam.

See details

Infinity Coping · 100 Linear Feet × $30

Infinity coping mud set on the pool beam with non-bullnose polished edges

$3,000

Waterline tile

140 lf of 6" waterline tile with step and bench trim, on a reinforced, waterproofed beam.

See details

Waterline Tiles · 140 Linear Feet × $35

6" waterline tile, step and bench trim (12.00 per ft material allowance)
Reinforce pool beam with bonded cement
BASECRETE waterproofing
Tile set with polymer thinset and grouted

$4,900

Florida Stucco Gem finish

Florida Stucco Gem interior in your choice of nine colors, with new drain grate and return fittings.

See details

Pool Finish · 120 Linear Feet × $75

Neutralize surface, Bondcote/Scratchcote
New main drain frame, grate and pool/spa return eyeballs
Florida Stucco Gem pool finish (optional upgrades available)
Colors: Aqua Clear, Aqua Gem, Blue Gem, Bone Gem, Double Sky Blue, French Silver, Ocean Breeze, Lagoon, Sky Blue

$9,000

Deck

Travertine or marble around the pool.

Subtotal$12,800

Pool deck, marble or travertine

Up to 800 sf of travertine or marble around the pool, on leveled, compacted sand.

See details

Pool Deck (Marble Or Travertine) · 800 Square Feet × $16

Supply and install travertine or marble pool deck, up to 800 sf
6.00 per sf material allowance
Grade leveling sand
Compaction
Thin set outer borders

$12,800

Equipment & automation

Pump, filtration, lighting, salt and heat pump, all on one app.

Subtotal$27,050

Pump, filter and spa blower

Jandy 2.7HP variable-speed pump, 200 sf cartridge filter and a 1.5HP spa air blower, on new pads with new plumbing and valves.

See details

Equipment Pack 2.7Hp · 1 Each × $6,200

Jandy 2.7HP 115/230V VS FloPro pump
Jandy 200 sf cartridge filter
Jandy 1.5HP air blower
New concrete pads, new plumbing from ground, new Neverlube valves

$6,200

Color LED lights

Four Jandy color LED lights: two in the pool, one in the spa and one in the sunshelf.

See details

Nicheless Color Led Light · 4 Each × $1,200

Jandy HydroCool 12V RGBW nicheless LED lights
Pool x2 (24W), spa x1 (12W), sunshelf x1 (12W)

$4,800

Automation and control panel

Jandy IQ906-PS AquaLink with iAquaLink: pool, spa, lights, garden lights and heater from your phone. Electrical permit and feed included.

See details

Automation And Control Panel - Iq906-Ps-Pc · 1 Each × $8,200

Open electrical permit
Load calculation and riser diagram
Line from the main house panel to the equipment area
Jandy IQ906-PS AquaLink RS control system
iAquaLink: pool, lights, garden lights, spa and heater over Wi-Fi
300W Jandy transformer and J-box for the pool lights

$8,200

Salt chlorinator

Salt system rated for up to 35,000 gallons, first 300 lbs of salt included.

See details

Jandy Truclear Salt Chlorinator · 1 Each × $1,900

Jandy TruClear salt chlorinator for up to 35,000 gallons
Up to 300 lbs of salt included

$1,900

Gulfstream heat pump

142,000 BTU electric heat pump, installed, with a 10-year parts warranty.

See details

Gulfstream He150Ra Heat Pump (Electric) · 1 Each × $5,950

Gulfstream HE150RA pool heat pump, 142,000 BTU, 6.2 COP
Installation included
10-year parts warranty

$5,950

FINAL PRICE

Proposal 5237-1 · all 13 items above · demolition and permits included

$130,000

YOUR SELECTIONS / INCLUDED IN THE $130,000 TOTAL

Your choice · no extra cost Select

Pool finish color

Florida Stucco Gem

Aqua Clear, Aqua Gem, Blue Gem, Bone Gem, Double Sky Blue, French Silver, Ocean Breeze, Lagoon or Sky Blue.
Upgrades to other finishes are available on request.
Mark your choice when you review the estimate in JobTread.

Your choice · no extra cost Select

Deck material

Up to 800 sf · 6.00 per sf material allowance

Travertine or marble pavers, set on leveled and compacted sand.
The renders show cream travertine.
We will bring samples so you can choose.

DESIGN / TODAY AND 6 RENDERS

From today to finished

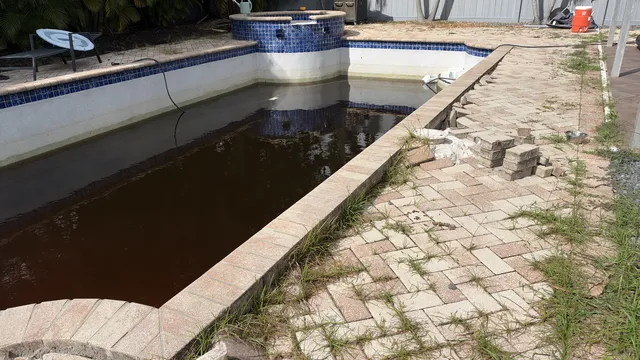

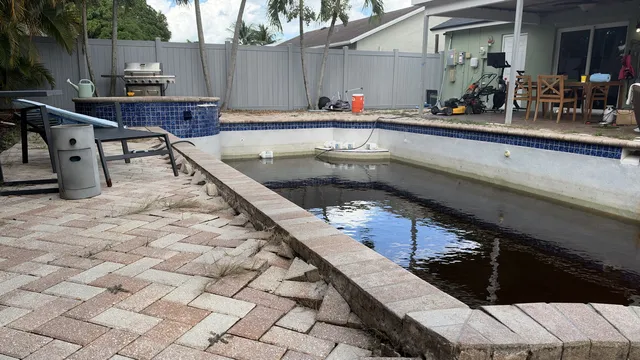

The existing pool, raised spa and brick paver deck today, before demolition — Today: the existing pool, raised spa and paver deck. All of it is demolished and hauled away before the new pool is built.

NEXT STEP / HOW TO APPROVE

Three steps. That is all.

1
Open the estimate

Use the JobTread link or download the PDF below.
2
Review and sign

Read the scope and the $130,000 total, then sign.
3
Click the green APPROVE button

That is the only thing you need to do. We take it from there.
